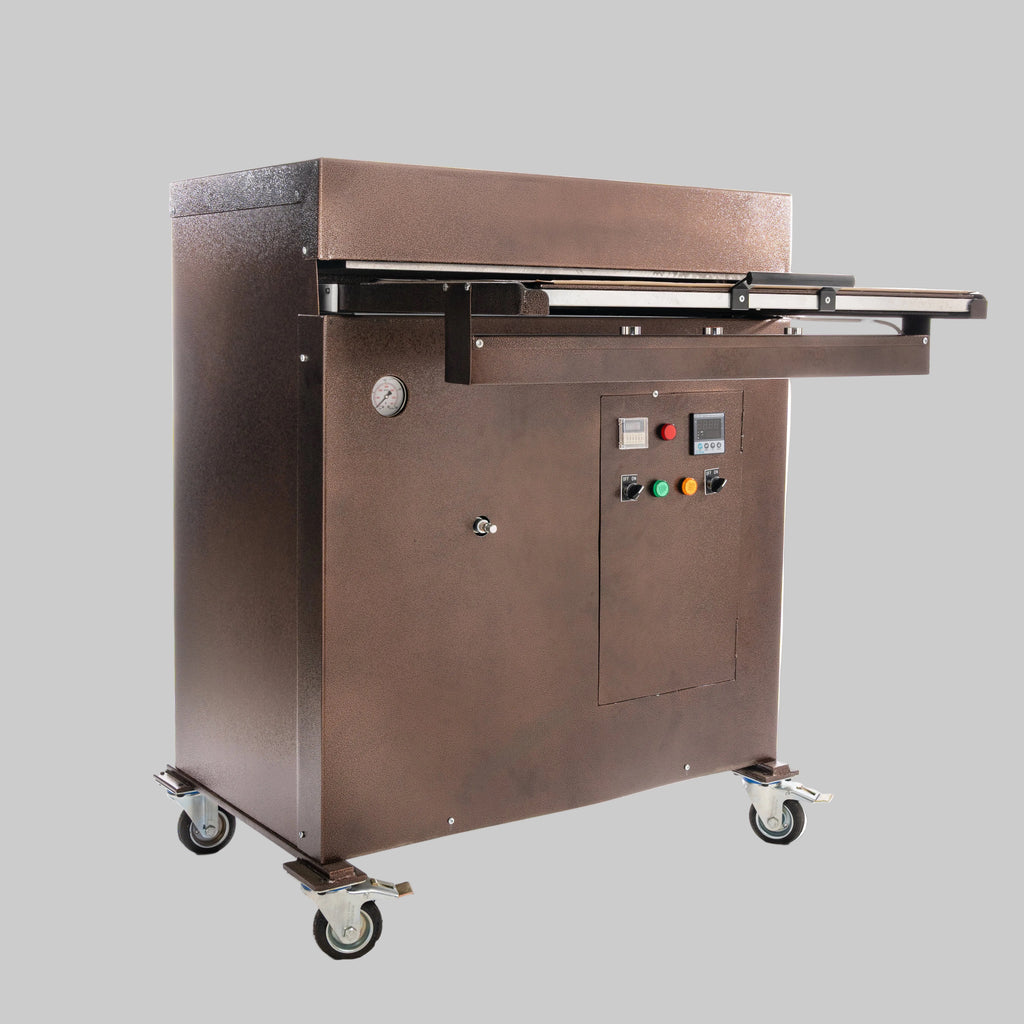

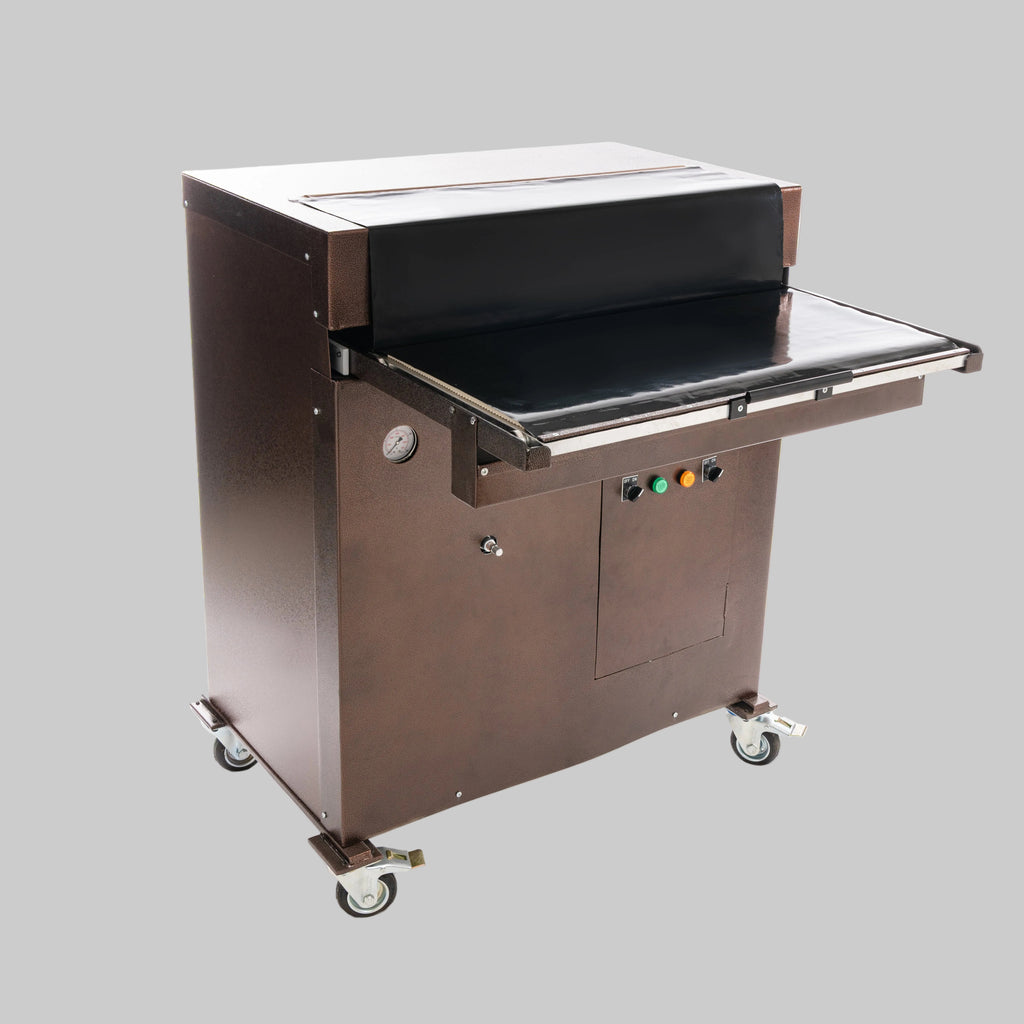

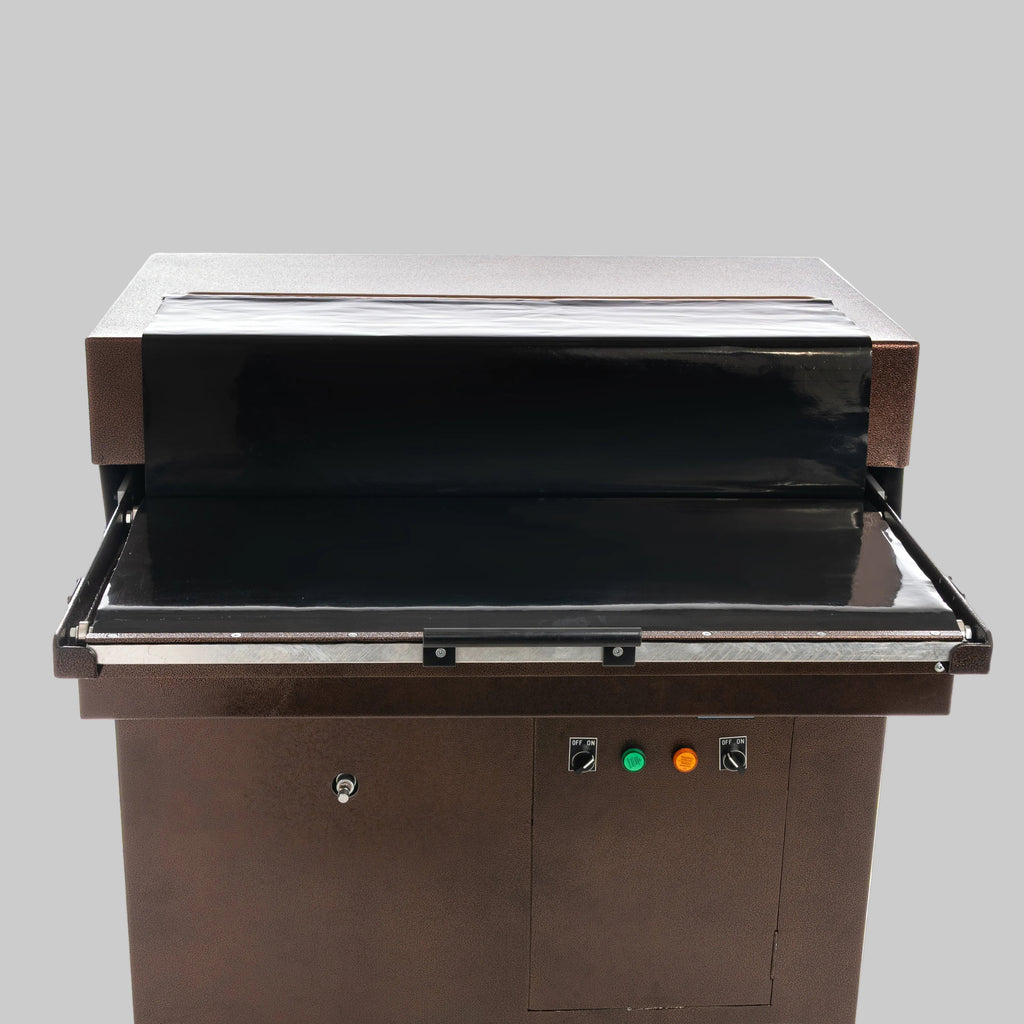

Large fusing machine

Large Press

Large40 × 80 cm

The high output press for demanding production, the largest working area in the range, with high, even hydraulic pressure and fully adjustable heat and cycle for a clean, repeatable fuse on collars, cuffs, and plackets. German grade engineering, built and supported in Saudi Arabia.



100 bar 175°C 2.5 HP motor 4500 W
Get a Quote

About this press

At The Large Press is built around a heavy duty, solid steel core and reinforced aluminum, driven by an Italian 2.5 HP motor and a high capacity oil pump. Pressure, temperature, and press time are each fully adjustable, so you can tune the machine precisely to your fabric and interlining.

At 40 × 80 cm it gives the most working area in the range, built for higher volumes and larger pieces, on locking casters that still move easily and stay stable in place.

Technical specifications

Working size40 x 80 cm
Pressing force100 bar
Temperature175°C
Press cycle30 s
MotorItalian 2.5 HP
Oil pumpup to 3.5 L
Heater4500 W
Power supply380/220V · 3-phase
Warranty2 years
